CO2 Injection Aquarium Setup Guide: Complete 2000+ Word Beginner Walkthrough
CO2 injection is one of the most powerful tools in a planted tank hobbyist’s arsenal. If you want explosive plant growth, vibrant colors, and lush aquascapes that rival professional layouts, injecting carbon dioxide into your aquarium is a game-changer. But if done wrong, it can be a source of algae, unstable water chemistry, or even fish stress.
This comprehensive CO2 injection guide will walk you through everything: why plants need CO2, how injection works, which systems are best, how to install and adjust them, safety tips, and dosing strategies. By the end, you’ll understand how to set up a fully optimized CO2 system that transforms your planted tank.
🌱 Why Plants Need CO2
Plants need three key things to thrive: light, nutrients, and carbon. CO2 (carbon dioxide) is the primary carbon source plants use for photosynthesis. In a low-tech tank, plants rely on the minimal CO2 found naturally in water from fish respiration and surface exchange. But once you increase light intensity or demand faster growth, natural CO2 levels aren’t enough.
Adding CO2 allows plants to grow more efficiently, outcompete algae, and show stronger coloration and leaf development. With high lighting, a tank without CO2 becomes unstable — algae takes over, plants melt, and nutrient uptake stalls. CO2 completes the triangle of balanced growth.
💡 Types of CO2 Systems
- Pressurized CO2: Uses a CO2 cylinder, regulator, bubble counter, and diffuser. The most stable and effective method.
- DIY CO2: Fermentation-based. Yeast and sugar create CO2 in a bottle. Works in nano tanks but inconsistent.
- Liquid Carbon (Glutaraldehyde): Not CO2, but an algae suppressant that offers a small carbon boost. Great for low-tech tanks.

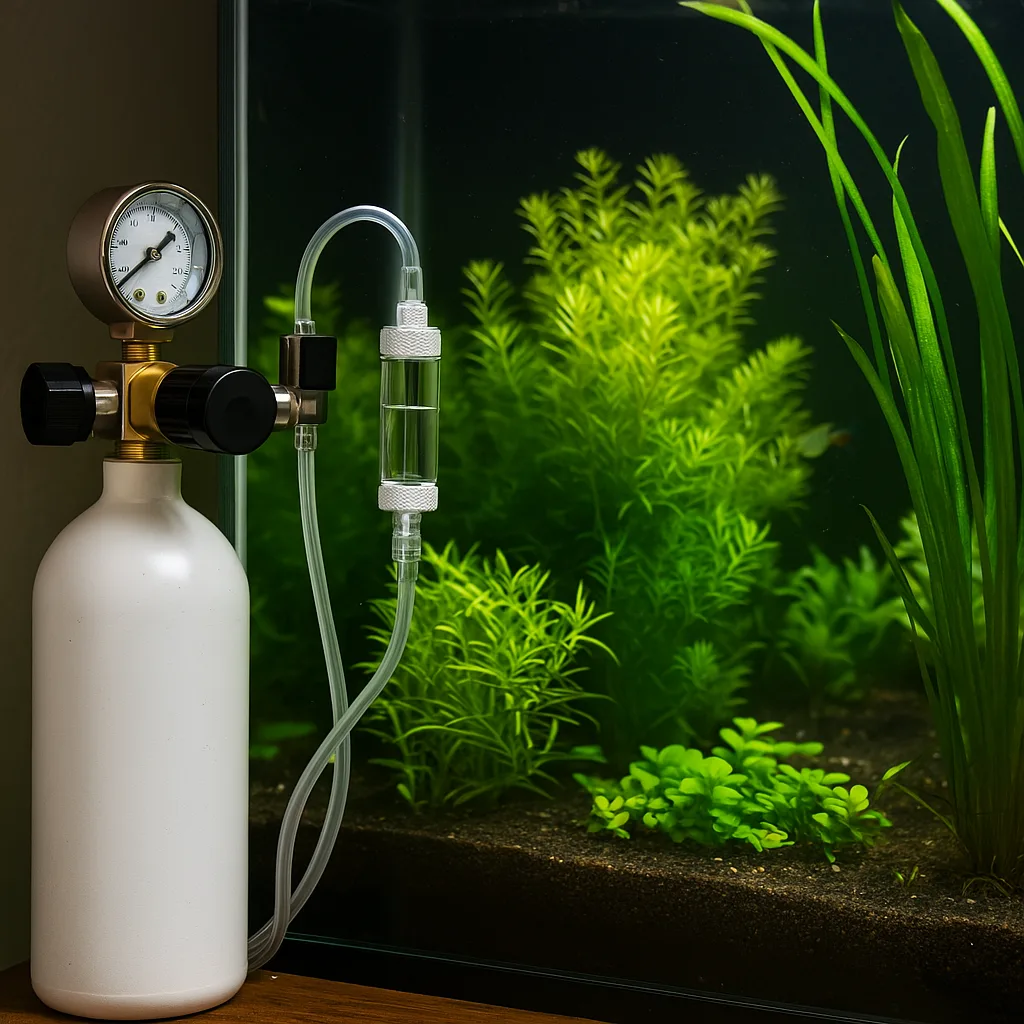

🧰 What You Need for a Pressurized CO2 Setup
- CO2 Cylinder: Usually 5 lb or 10 lb. Refillable. Provides months of injection.
- Regulator: Controls pressure. Dual-stage is best to prevent end-of-tank dumps.
- Solenoid Valve: Turns CO2 on/off with a timer or pH controller.
- Bubble Counter: Measures CO2 flow rate visually.
- Check Valve: Prevents tank water from siphoning backward into equipment.
- Diffuser or Reactor: Dissolves CO2 into tank water efficiently.
- Drop Checker: Measures CO2 levels using color indicator fluid (aim for lime green).
⚙️ How to Set Up a CO2 System Step by Step
- Secure your CO2 cylinder upright near the tank.
- Attach the regulator to the cylinder and tighten using a wrench.
- Connect airline tubing to the bubble counter and then to the diffuser.
- Install a check valve inline.
- Place diffuser low in the tank near the filter outflow for circulation.
- Plug solenoid into a timer — match CO2 to your photoperiod (1 hour before lights on, off 1 hour before lights off).
- Open cylinder valve slowly and adjust the working pressure (30–40 PSI for atomizers, lower for reactors).
- Adjust the needle valve to set bubble rate — start around 1 bubble per second per 10 gallons.
🔬 How to Measure and Tune CO2 Levels
- Drop Checker: Lime green = ~30 ppm CO2. Blue = too little. Yellow = too much.
- pH Drop Method: Measure pH with CO2 on vs. off. A 1.0 pH drop usually means optimal CO2 levels.
- Observe Livestock: Gasping at the surface = too much CO2. Reduce immediately.
💸 Cost Breakdown
| Item | Average Cost |
|---|---|
| 5 lb CO2 Cylinder | $60–$80 |
| Dual-stage Regulator with Solenoid | $100–$200 |
| Diffuser or Reactor | $15–$60 |
| Drop Checker | $10–$20 |
| Tubing, Check Valve, Bubble Counter | $15–$30 |
| CO2 Refill (5 lb) | $15–$30 every 3–6 months |
📈 Benefits of CO2 Injection
- Explosive plant growth — carpeting plants and stem plants thrive
- Improved coloration — reds, purples, and bronze tones show better
- Algae control — healthy, fast-growing plants outcompete algae
- Improved nutrient uptake — fertilizers work more efficiently
⚠️ Common Mistakes to Avoid
- Skipping the check valve — water can destroy your regulator
- Over-injecting CO2 — can suffocate fish overnight
- Inconsistent bubble rate — causes algae due to unstable conditions
- Running CO2 with poor flow — gas won’t dissolve evenly
- Ignoring drop checker color — always tune based on feedback
🧪 CO2 and Fertilizer Dosing
CO2 boosts nutrient demand. If you inject CO2, you must also dose fertilizers — either through Estimative Index (EI), lean dosing, or all-in-one products like Thrive, Easy Green, or NilocG. Don’t increase light or CO2 without matching it with macros (NPK) and micros (Fe, trace).
🌿 Best Plants for CO2 Injection
- Monte Carlo
- Dwarf Hairgrass
- Rotala rotundifolia
- Ludwigia repens or super red
- Hemianthus callitrichoides (HC Cuba)
- Ammania gracilis
